| Portable Tanks | ||||||
| Unique to CC Crump we bring you our very latest additions our range of portable tanks. For very large loads between 850 and1650 litres our tanks meet the requirements for a UN Type T22 Portable Tank. |
||||||
 |
850 - 1650 litre Portable Tanks | |||||
| Operating Pressure: | 7.69 Barg | |||||
| Hydraulic Test Pressure: | 10 Barg | |||||
| Design Code: | ||||||
| ASME VIII Div. 1 | ||||||
| Tare Weight (est): | 1, 450 kg (1, 250 ltr capacity, lead lined) | |||||
| Bromine Capacity @ 90%: | 3, 515 kg | |||||
| Maximum Gross Weight: | 5, 000 kg | |||||
| Vessel Material: | Steel ASME SA516-98 A516 70MT-90 | |||||
| Lining: | Lead BS3909/3 6mm thick | |||||
| Valves: | Saunders DN40 diaphragm valves or as specified by customer. | |||||
| Relief Valve: | Fort Vale 65mm Maxi Hi-Flow with 65mm Rupture disc in series | |||||
| Dip-pipes: | Nickel 200 Sch 40 1.5"NB pipe | |||||
| Gaskets: | Sigma 500 Modified PTFE | |||||

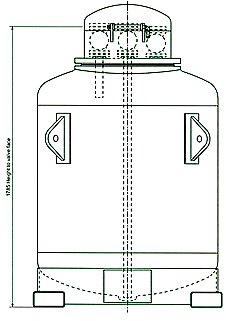

| (Click to enlarge) | ||||||
 |
||||||
 |
|
|
|
|||
|
